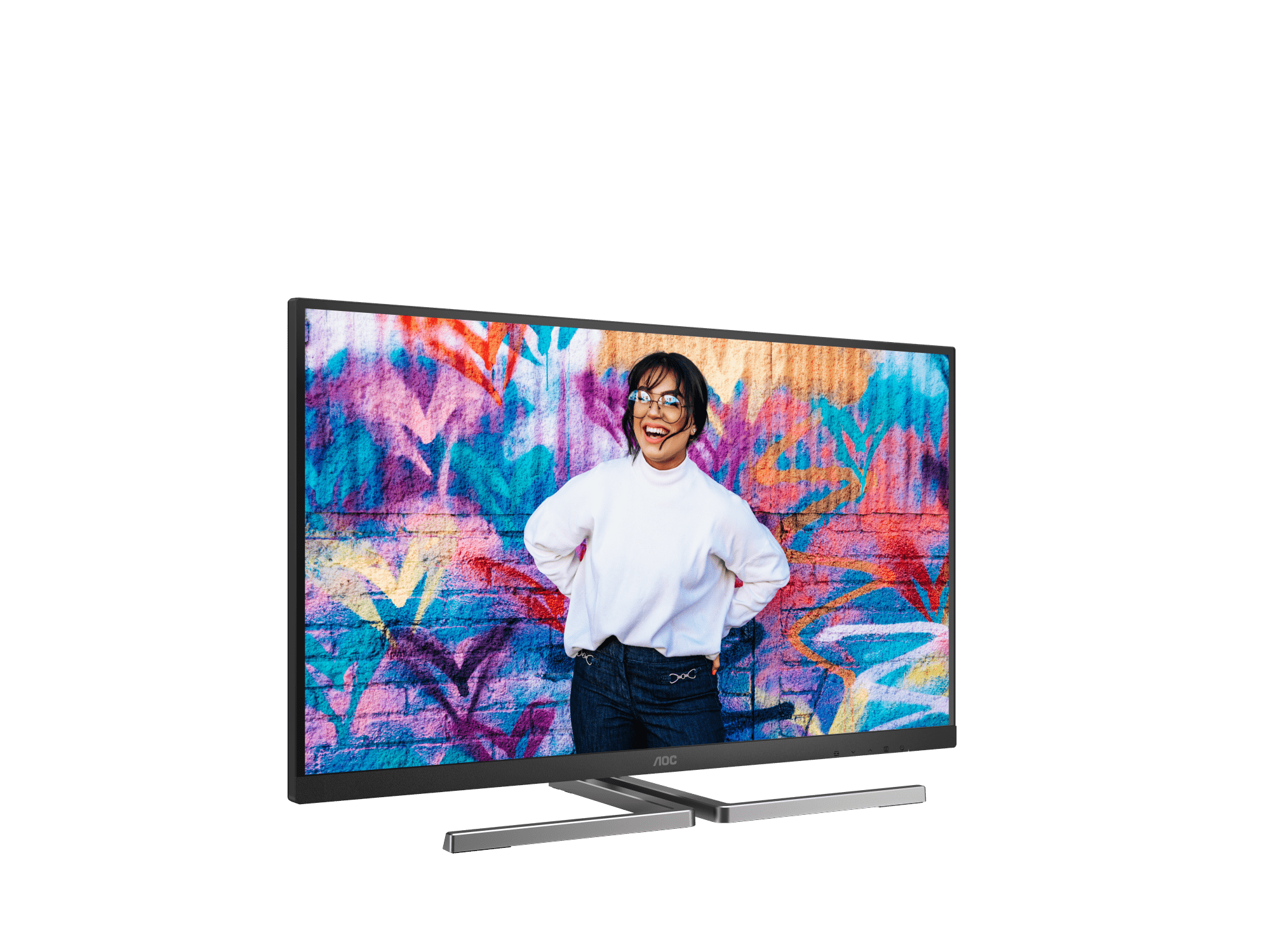

U27U3XD

27" Dual Refresh Rate Graphic Pro Monitor

Experience pro-grade visuals on a 27" IPS panel featuring a 2000:1 contrast ratio and VESA HDR400 certification. Choose stunning 4K at 144Hz for immersive detail or FHD at 288Hz for ultra-competitive speed, both enhanced by Adaptive Sync with G-Sync compatibility. Streamline your setup with KVM and USB-C (90W PD), plus PBP/PIP multitasking for seamless multi-device workflows. Achieve perfect visuals through 93–105% luminance uniformity and precise 6-axis Hue/Saturation calibration. Enjoy blur-free action with 0.5ms MPRT, while Flicker-Free and Low Blue Light technologies keep your eyes comfortable. Effortlessly adjust height with the ergonomic stand, fine-tune settings via i-Menu, and support sustainability with our eco-friendly Green Packaging.

...

Dual Refresh Rate
IPS
1920 × 1080 (FHD) @ 288Hz
0.3ms MPRT @ 288Hz
3840 × 2160 (UHD) @ 144Hz
0.5ms MPRT @ 144Hz

Designed with wide viewing angles

IPS displays deliver 178/178-degree viewing angles while maintaining consistent image quality and colors from all viewing positions. You can also view your spreadsheets or weekend movies from virtually any angle without compromising color uniformity.

Landmark technology of dual-refresh rate feature

Dual Mode monitors adapt to your workflow—so you can move fast, stay focused, and operate at peak efficiency. Seamlessly switch between two precision-tuned display settings, whether you’re deep in design work or toggling through dashboards. Choose high resolution for pixel-perfect clarity when every detail counts, or go with ultra-high refresh rates for buttery-smooth multitasking and motion rendering.

VESA Certified DisplayHDR 400

VESA-certified DisplayHDR 400 delivers a significant step-up from normal SDR displays. Unlike, other 'HDR compatible' screens, true DisplayHDR 400 produces astonishing brightness, contrast and colors. With global dimming and peak brightness up-to 400 nits, images come to life with notable highlights while featuring deeper, more nuanced blacks. It renders a fuller palette of rich new colors, delivering a visual experience that engages your senses.

A universally respected anti-tearing solution

Gaming shouldn't be a choice between choppy gameplay or broken frames. Get fluid, artifact-free performance at virtually any framerate with Adaptive-Sync technology, smooth quick refresh and ultra-fast response time.

HDMI 2.1 expands the limits of possibility

HDMI 2.1 brings faster and variable refresh rates and amazing 48Gbps transmission bandwidth, for reduced or eliminated lag, stutter and frame tearing, plus higher resolution, higher frame rates, and smooth, fluid and detailed up to 4K120Hz gaming experience.

Powerful connectivity

Simplify the connections with one cable only. The USB-C connection provides DisplayPort Alternate Mode for transferring high-resolution video signals from a notebook to the monitor while simultaneously charging the notebook’s battery from the monitor with USB power delivery.

Multitask like it was nothing

Picture-in-Picture and Picture-by-Picture empowers you to multitask likeit was nothing. These features display and fine-tune content from different PCs sources onto your screen at once, making it much easier to work on multiple projects at the same time.

KVM Switch Enables Multi-device Access

The built-in KVM switch allows two computer devices connected to the display – one via USB-C and the other via HDMI or DisplayPort – to be easily controlled by one keyboard and mouse. Swap between them at the flip of a switch to save valuable time and desk space.

Protect your eyes from screen flicker

Flicker-free technology reduces flicker to give you a more comfortable gaming experience. Normal LED-backlit monitors adjust brightness using PWM (Pulse Width Modulation) which causes flickering and results in eye discomfort over long periods oftime. AOC flicker-free technology uses a DC (Direct Current) backlight system to provide a more comfortable and healthier viewing experience, minimizing the effects of eye fatigue during work hours.

Easy adjustments just one click away

AOC's i-Menu allows direct access to the monitor's on-screen display settings utilizing a mouse.

Specifications

Model name	U27U3XD
Panel	27" (IPS)
Pixel Pitch (mm)	0.1554 (H) × 0.1554 (V)
Effective Viewing Area (mm)	596.736 (H) × 335.664 (V)
Brightness (typical)	450 cd/m²
Contrast Ratio	2000 : 1 (typical) / MEGA DCR
Response Time	4ms (GtG) / 0.3ms MPRT(288Hz) / 0.5ms MPRT(144Hz)
Viewing Angle	178° (H) / 178° (V) (CR > 10)
Color Gamut	sRGB 100% (CIE1931) / DCI -P3 98% (CIE1976) overlap percentage
Color Accuracy	-
Optimum Resolution	3840 × 2160 @ 144Hz (8 bit)–DisplayPort1.4,+DSC HDMI2.1, USB-C+DSC; 1920 × 1080 @ 288Hz (8 bit)–DisplayPort1.4,+DSC HDMI2.1, USB-C+DSC; 3840 × 2160 @ 120Hz (10 bit)–DisplayPort1.4,+DSC HDMI2.1, USB-C+DSC; 1920 × 1080 @ 240Hz (10 bit)–DisplayPort1.4,+DSC HDMI2.1, USB-C+DSC
Display Colors	1.07 Billion (4K 120Hz, F 240Hz)
Signal Input	HDMI 2.1 × 2, DisplayPort 1.4 × 1, USB-C (DP Alt, 90W) × 1
HDCP Version	HDMI : 2.3 / DisplayPort : 2.3
USB Hub	USB-A (USB3.2 Gen2 × 4)
Power Supply	Internal 100 - 240V ～ 3.0A, 50 / 60Hz
Power Consumption (typical)	39W
Speakers	No
Line in & Earphone	Earphone x 1
Wall-Mount	100mm x 100mm

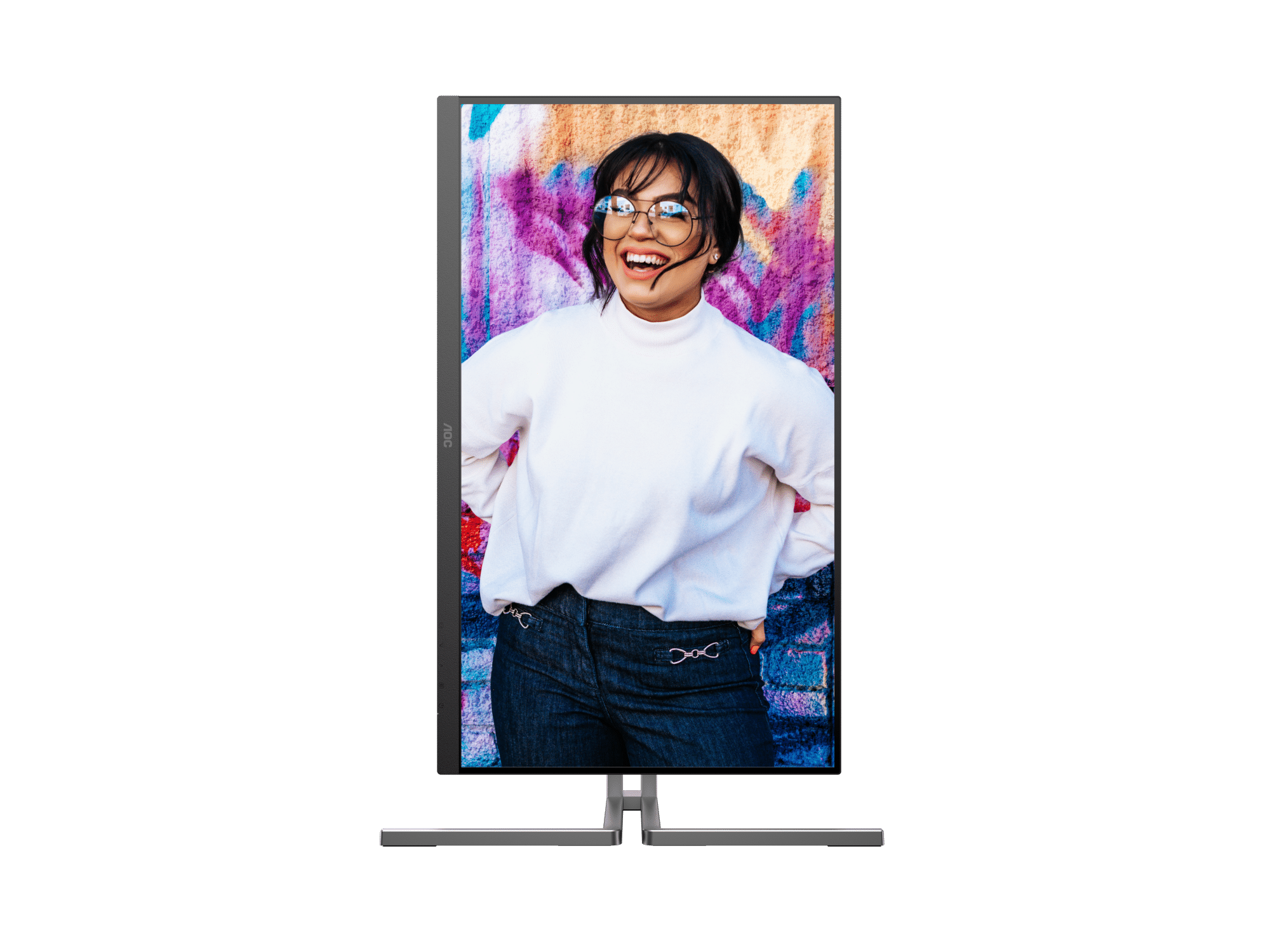

Adjustable Stand	Height: 150mm, Pivot: —90° ~ 90°, Swivel: —30° ~ 30°, Tilt : —5° ~ 23°
Product without Stand (mm)	365.0 (H) × 613.9 (W) × 55.6 (D)
Product with Stand (mm)	400.0 ~ 546.4 (H) × 613.9 (W) × 238.4 (D)
Packaging (mm)	480 (H) × 825 (W) × 162 (D)
Product without Stand (kg)	4.35
Product with Stand (kg)	6.1
Product with Packaging (kg)	9.85
Cabinet Color	Black & Grey
Regulatory Approvals	CE / CB / FCC / RoHS
* Design and specifications are subject to change without notice.
